For municipalities and road & motorway maintenance depots
LED light rods for your snow plough
Marking for plough blades, visible from both sides: white to the front for oncoming traffic, red to the rear for the driver. UV-stabilised polycarbonate tube and stainless-steel pole adapter – made in Germany for winter maintenance.
The light rod is slipped onto the marker pole at the outer edge of the plough blade and shows the width of the plough: white to the front, red to the rear. Stainless steel, UV-stabilised polycarbonate and a fully sealed housing.
Bright
50 cm of illuminated length behind an opal diffuser – even light, with no individual points of light.
White approx. 70 cd · Red approx. 5 cd · Steady light
Robust construction
Transparent, UV-stabilised polycarbonate tube with a continuous aluminium profile as carrier.
Tube Ø 25 mm · Overall length 911 mm
Sealed & maintenance-free
Supplied fully sealed. The rod contains no parts that require maintenance.
Ingress protection IP6K9K · −40 … +60 °C
Suitable for vehicle systems
For vehicle electrical systems of 22–37 V DC, protected against reverse polarity and overvoltage. Lights up together with the parking light.
22–37 V DC · 3 ± 0,5 W
Supplied ready to fit
Supplied with pole adapter and a permanently connected 1.5 m cable. To be fitted by a specialist workshop.
Stainless-steel adapter Ø 30 mm · 1.4401
Approval in progress
The procedures at KBA and TÜV are under way and close to completion.

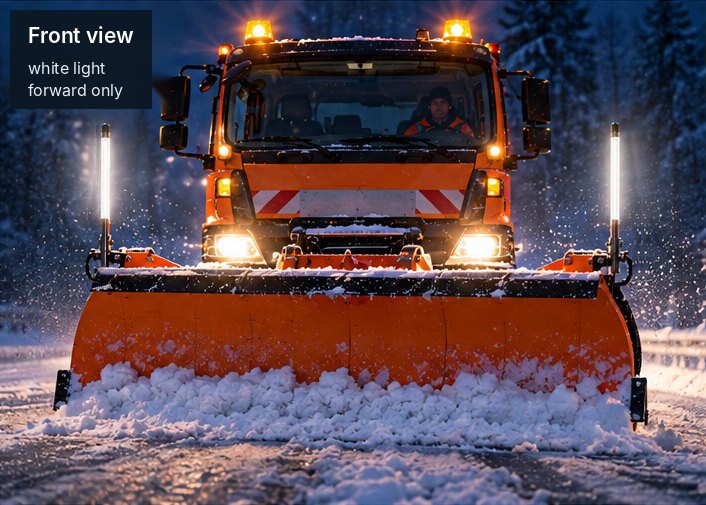

Front view: white light shows oncoming traffic the actual clearing width. (visualisation created with AI assistance)
In any light
The plough width always in view
White to the front for oncoming traffic, red to the rear for the driver – in daylight, at dusk, at night and in driving snow.
Visualisation created with AI assistance: plough width in four lighting conditions.
IP6K9KIngress protection, suitable for high-pressure cleaning
500 mmilluminated length, both sides
−40 … +60 °COperating temperature
22–37 V DCConnection to the on-board voltage

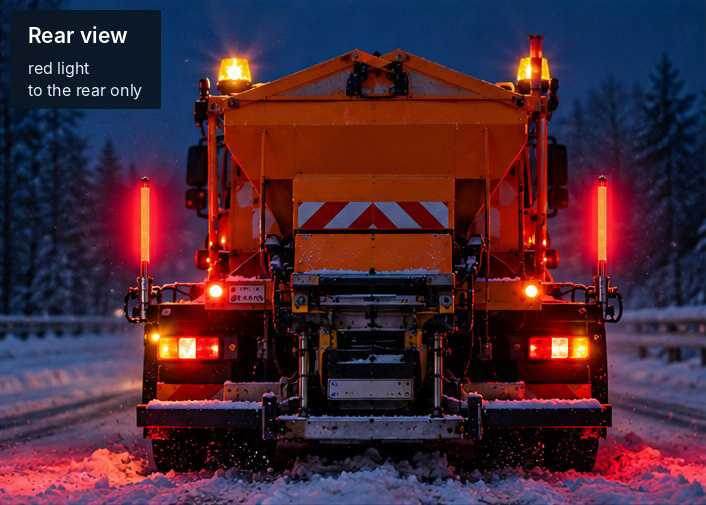

Rear view: red light to the rear only – the driver can see at all times where the blade ends. (visualisation created with AI assistance)
White front · Red rear
Front, rear, outer edge – always visible
White side – facing forward
Shows oncoming traffic the actual working width of the plough.
Red side – facing rearward
The driver can see at all times where the plough blade ends – even in driving snow and at night.
Always correctly aligned
The rod has an internal anti-rotation lock: with the cable outlet at the rear, the white side automatically faces forward. One light rod per side of the plough, secured with 6 screws (2 Nm).
White · to the frontRed · to the rearStainless-steel adapter
Overall view: one illuminated surface, two light colours – no conversion, no second component.
White sideRed side6 × M5 · 2 Nm
Close-up: transition from light tube to stainless-steel adapter, fitted with anti-rotation lock.
911 mmOverall length
50 cmIlluminated area
0,8 kgper rod
IP6K9KIngress protection
The product
White to the front. Red to the rear.
One light rod, two light colours: the rod has an internal anti-rotation lock – with the cable outlet at the rear, the white side automatically faces the direction of travel.
Front side · white
Shows oncoming traffic the actual working width.
1234
Light tubePolycarbonate, UV-stabilised, Ø 25 mm, with opal diffuser.
Pole adapterStainless steel 1.4401, Ø 30 mm. Slipped onto the marker pole or spring element (max. Ø 25.5 mm), insertion depth 108 mm.
Cable outlet1.5 m cable, 2-core, permanently connected. When fitted, it points to the rear.
Slip onPush the rod onto the pole from above until it rests against the stop pin (108 mm).
AlignCable outlet to the rear – the white side then automatically faces forward (internal anti-rotation lock).
Screw in place6 screws M5 × 8 with thread-locking compound, tightened in a cross pattern to 2 Nm.
ConnectRed (+) to the switched, fused on-board voltage, black (−) to earth. The rod lights up with the parking light.
Tools: 4 mm hex key, torque wrench (2 Nm), medium-strength thread-locking compound, material for the electrical connection. Fitting and connection by a specialist workshop only.
Frequently asked questions
Answers before you enquire
Has the approval already been granted?
The procedures at KBA and TÜV have been applied for, are under way and are close to completion. Until approval is granted, we do not advertise with test marks or approval numbers. Samples for trials and sampling can already be requested; we will provide the documentation once approval has been granted.
Does the light rod fit my snow plough?
Yes, if your plough has a marker pole or spring element with a max. Ø of 25.5 mm whose upper end is cut off square and deburred and whose upper 108 mm are straight and undamaged. This dimension is decisive, regardless of the plough manufacturer. If yours differs, please ask us.
How is it connected? Does it also run on 12 V?
It is connected to the switched, fused on-board voltage and lights up together with the parking light. The cable (1.5 m, 2-core, open end) is permanently connected: red to positive, black to earth. Reverse polarity and overvoltage are protected against. Operation only at 22–37 V DC (current consumption 125 mA), not on 12 V. For detachable ploughs we recommend a waterproof plug connector at the plough mounting.
Who fits it, and where does it sit?
Fitting and connection are carried out by a specialist workshop, one rod per side of the plough on the outer marker pole. The illuminated area lies 278 to 778 mm above the end of the pole; the component height is chosen so that the prescribed height above the road surface is maintained.
How bright is it?
White to the front approx. 70 cd, red to the rear approx. 5 cd, each with 500 mm of illuminated length behind an opal diffuser, in steady light. The values are guide values from our own measurement (lux meter, 1 m distance, darkened room).
Does it withstand salt, cold and pressure washers?
Ingress protection IP6K9K, operating temperature −40 to +60 °C, UV-stabilised polycarbonate tube, adapter and end caps made of stainless steel 1.4401. Pressure washers at a distance of at least 30 cm and not directly onto the cable outlet. No solvents, petrol or oils on the polycarbonate.
Do I need to maintain anything? What if it is damaged?
The rod is maintenance-free and must not be opened. After the season, check the screws (2 Nm), cable and plug connection. A damaged rod (crack in the tube, moisture inside, defective cable) must not be operated any further. The statutory warranty applies; we will clarify replacement on a case-by-case basis.
Price, lead time, tiered pricing, tenders?
We quote price and lead time on request, with tiered pricing for municipalities, dealers and plough manufacturers. You can download the data sheet and tender specification text (both in German) above under Technical data.
Approval & standards
KBA and TÜV approval in the home straight
The approval procedures at the Federal Motor Transport Authority (KBA) and at TÜV have been applied for, are under way and are close to completion.
Planning a procurement or tender? Talk to us – we will inform you of the current status and the expected date.
As soon as the approvals are available, we will provide the documentation here.
Samples for trials and sampling can already be requested now.
Fitting by a specialist workshop: one light rod per side of the plough, in accordance with the installation regulations (UN-R48, StVZO – the German road traffic licensing regulations) and the vehicle’s installation expert report.
Applications submittedFederal Motor Transport Authority (KBA) and TÜV
Procedures under wayTesting close to completion
Grant and documentationProvided here
Fitting
By a specialist workshop in accordance with the installation regulations (UN-R48, StVZO) and the vehicle’s installation expert report. One light rod per side of the plough.
Marking
The StVZO regulations apply to the marking of attached equipment. Your specialist workshop or testing organisation will clarify dimensions and heights for your vehicle.
Transparency
Until approval is granted, we do not quote any test marks or approval numbers. What we state can be found in the data sheet and the instructions.
1
Enquiry
Samples, quantities, projects
Send us your enquiry using the form or contact us directly by telephone or e-mail.
